Diesel Telescopic Boom Lift HT26J (25.9m Height)
HT26J
HT26J
HT26J
Email

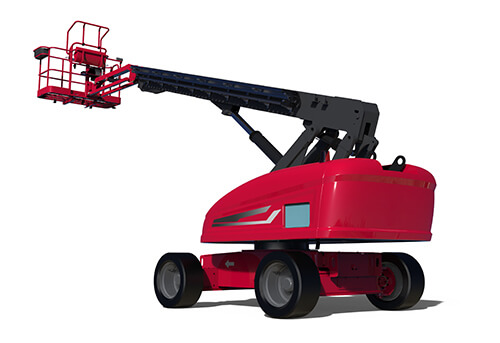

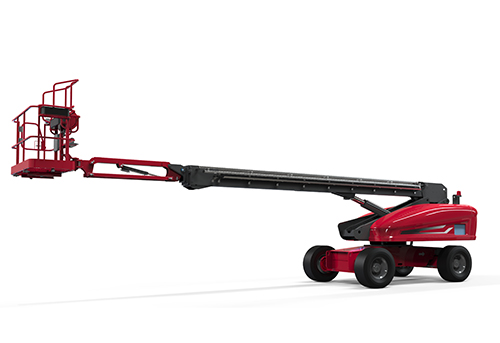

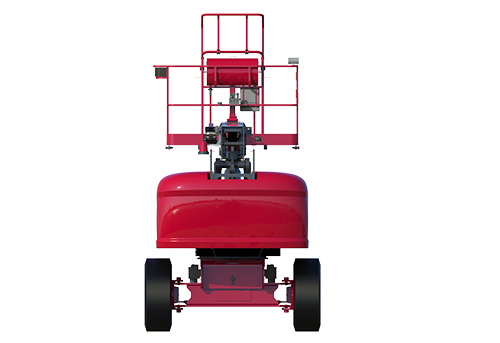

Diesel Telescopic Boom Lift HT26J (25.9m Height)

Product Description

HT26J telescopic boom lift adopts a diesel engine that's best for outdoor applications. Manoeuvrable jib and rotating basket allow for precise positioning of the platform. Telescopic boom lifts are mainly used for construction, airports, ports jobs as well as outdoor billboard installation.

Product Highlights

● Large size platform, quick action response.

● Fault self-diagnosis system.

● Smooth telescopic boom control technology.

● Floating design, high passability and off-road capability.

● Platform Capacity: 300kg/450kg

● Max. Working Height: 27.6m

Standard Features

ModelsHT26J
Measurements
Max. Working Height27.6m
Max. Platform Height25.9m
Max. Horizontal Reach23.3m
A-Length (Stowed)11.9m
B-Width (Stowed)2.49m
C-Heights (Stowed)2.89m
D-Platform Length2.44m
E-Platform Width0.91m
F-Wheel Base3.05m
Wheel Track2.1m
G-Ground Clearance0.46m
Productivity
Max. Platform Capacity (Unrestricted/Restricted)300kg/450kg
Drive Speed (Stowed)5.4km/h
Gradeability (Stowed)45%
Turning Radius (In.)3.66m
Turning Radius (Out.)6.55m
Turntable RotationContinuous 360°
Platform Rotation-80°-80°
Jib Rotation-65°-78°
Max. Slope3°
Max. Operating Wind Speed12.5m/s
Power
Power SourceDeutz D2011L04i
Fuel Tank Capacity140L
Control12V
Hydraulic Tank Capacity170L
DriveAWD
SteeringFront Wheels
Tires
Tires355/55D 625-16
Weight
Weight17920kg
● Automatic Leveling Platform● All Motion Alarm
● Color Display Screen● Horn
● Swing Bridge● Emergency Lowering System
● Self-diagnosis System● Flashing Beacons
● Swing Out Engine Tray● Proportional Control
● Overload Sensor● Emergency Stop
● Tilt Sensor● Self-lock Entrance Gate

Options & Accessories

● AC Power to the Platform
● Anti-collision Device

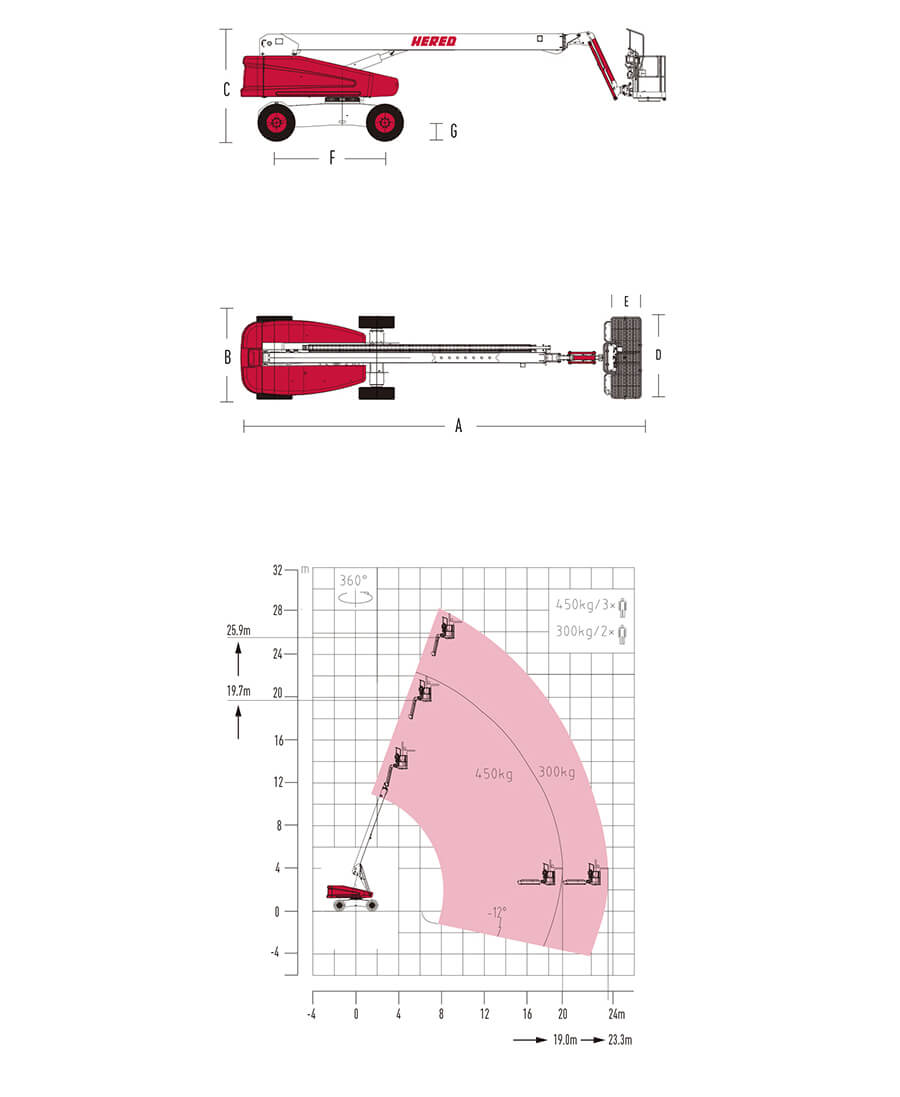

Diagram
