Small 5ton Forklift Truck
Small 5ton Forklift Truck
Small 5ton Forklift Truck
Small 5ton Forklift Truck
Small 5ton Forklift Truck
Email

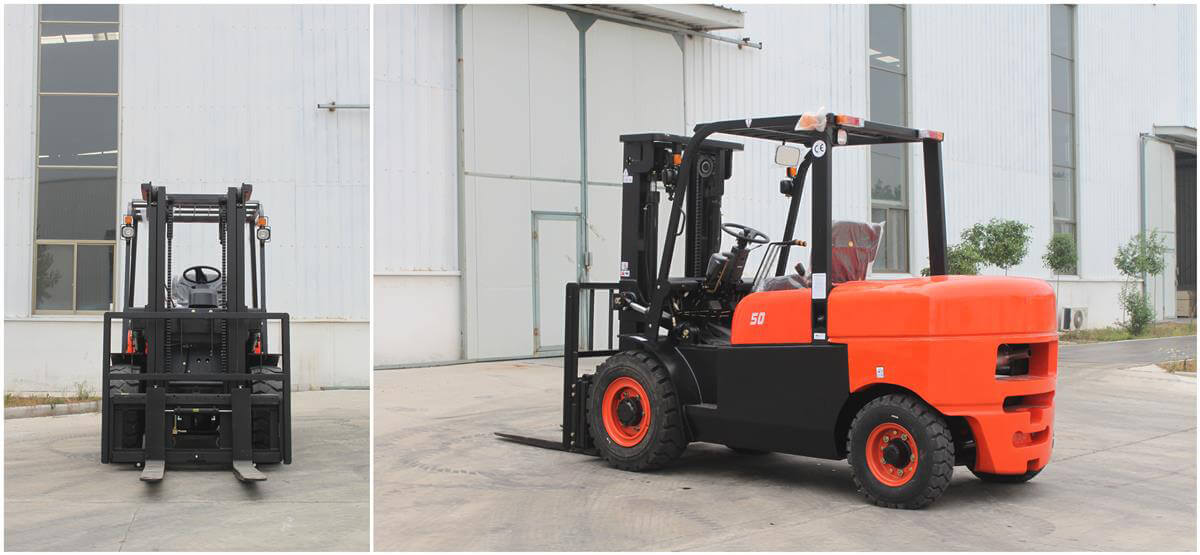

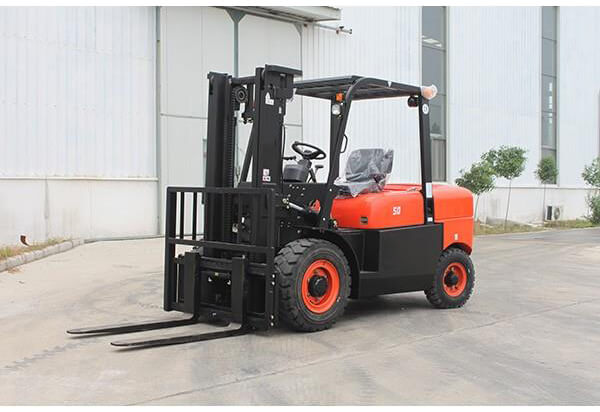

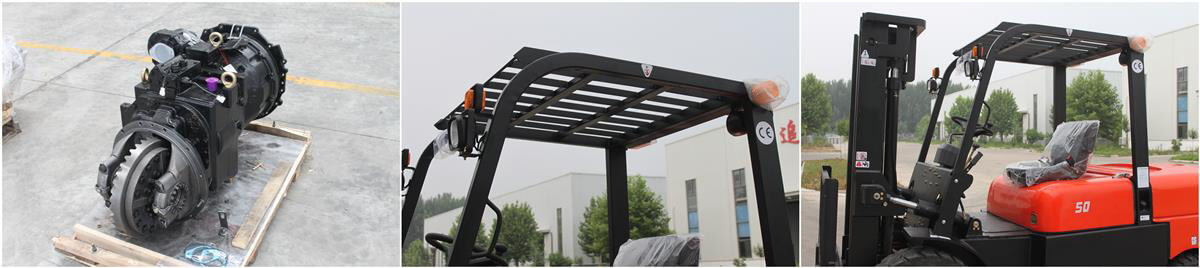

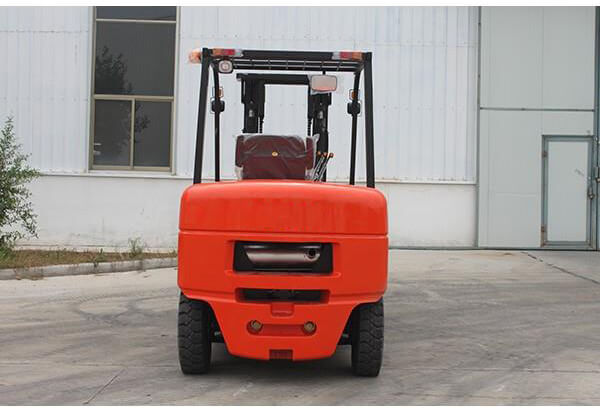

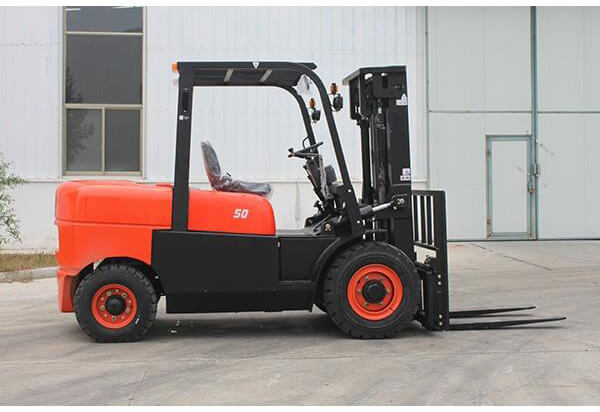

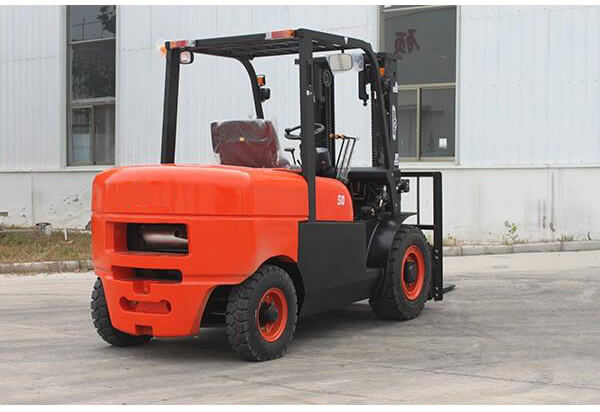

Small 5ton Forklift Truck

Description of products:

As lifting and transporting machineries, small 5ton Diesel Forklift Truck is widely used for loading, unloading and transporting the packaged goods in the construction site, factories, warehouses, stations, wharves, ports and so on.

Applications:

As lifting and transporting machineries, small 5ton Diesel Forklift Truck is widely used for loading, unloading and transporting the packaged goods in the construction site, factories, warehouses, stations, wharves, ports and so on. With other attachments of forklift trucks, it can be used for the handling of the bulk goods and unpackaged goods.

Technical Parameter

GeneralModel CPCD50F
Rated capacity kg 5000
Load center mm 500
Power type Diesel
Transmission Hydraulic/Mechanical
Dimensions Lifting height mm 3000
Free lifting height mm 150
Turning radius mm 3000
Overall length mm 4350
Overall width mm 1400
Overall height (mast lowered) mm 2330
Overall height (mast raised) mm 4265
Overall height (overhead guard) mm 2330
Fork length mm 1220
Fork width mm 150
Fork thickness mm 50
Performance Max. driving speed (with/without load) km/h 20/24
Max. lifting speed (with load) mm/s 375
Max. traction (with/without load) kn 31/18
Gradeability (with/without load) % 15/20
Tilting angles (forward/backward) ° 6/12
Service weight kg 6800
Engine Engine model LR4A3/4JR3
Power kW 59
Rated speed rpm 2400 /2200
Displacement L 4.3
No. of cylinder 4
Wheel Front overhang mm 565
Wheel base mm 2150
Front tread mm 1180
Rear tread mm 1190
Front tire 300-15
Rear tire 7.00-12

Product Features:

1. Standard lifting height: 3000mm with wide view mast.

2. Optional 2-stage 3500mm mast, 2-stage 4000mm mast, 3-stage 4500mm mast, 3-stage 5000mm mast, 3-stage 6000mm mast.

3. Load center: 500mm.

4. Equipped with Xinchai/Quanchai engine or imported Isuzu engine.

5. With more power and low emission engine, stronger loading capacity gradeability; With load sensing hydraulic system, quicker lifting speed, higher working effciency.

6. Strenthen and Optimize core structure parts, strength improved greatly; with intelligent gear shifting technology to avoid 2nd-gear start, improved transmission life.

7. Intelligent gear shifting system, ease of operation Standard half surrounded seat, safety and comfort.

8. Wider intermal space, more reasonable parts layout and 800hood opening angle make maintenance easy.
