Parameters Info:

Model			CPD750
Power type			Lead acid Battery
Rated load		Kg	750
Load center distance		mm	400
Driving type			seat
Length	With fork L1	mm	2592
	Without fork L2		1652
Whole Width B			940
Height	Height no lifting frame H1		1680
	Top frame height H2		1950
	Max Height working H3		3320
Distance from seat to top light L3			970
Wheel base L4			1020
Front overhang Y			327
Back overhang L5			313
Front wheel tread R			840
Back wheel tread P			741
Min Floor clearance F			90
Max lifting height H			2500
Free lifting height H4			0
Fork changing S			820/190
Min Turning radius WA			1800
Min driving width RA			2000
Frame angle a/β		(°)	6/12
Max lifting speed without goods		mm/s	300
Max lifting speed with full goods			220
Max speed without goods		Km/h	12
Max speed with full goods			11
Max climbing angle		%	≤10
Whole weight		Kg	1520
Driving Wheel			2x/2
Type model			solid tyre

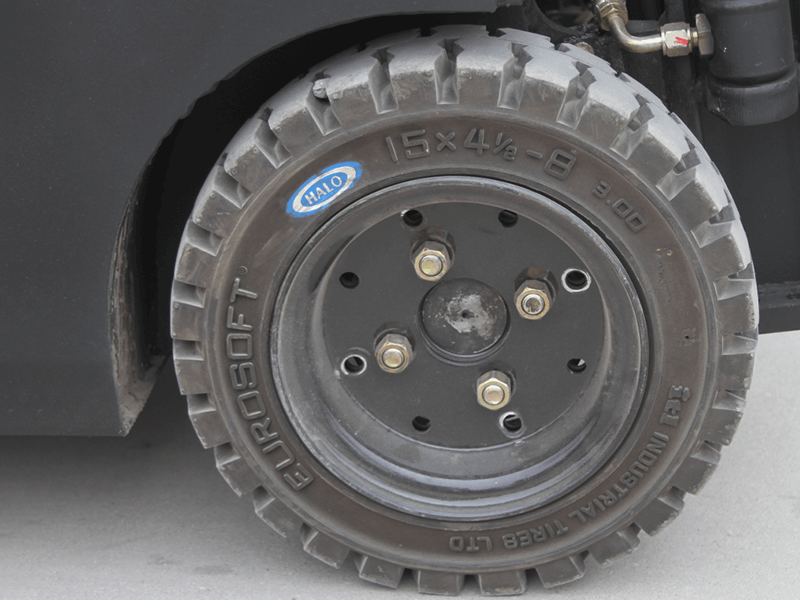

Front Tyre			15x4 1/2-8
Rear Tyre			3.50-5
Hand Brake			Hydraulic pedal
Brake type			Hand type
Battery Volt/ capacity		V/Ah	48/140
Driving motor power		kW	4AC
pump power			4DC

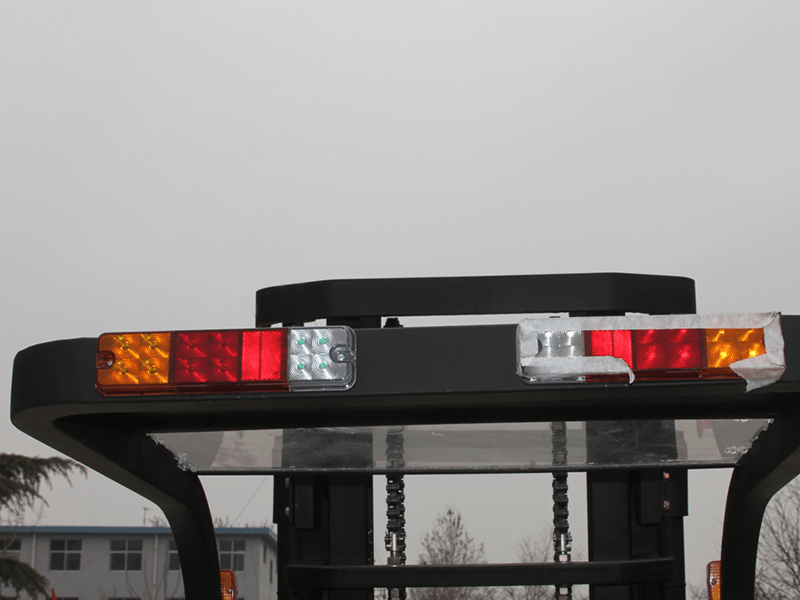

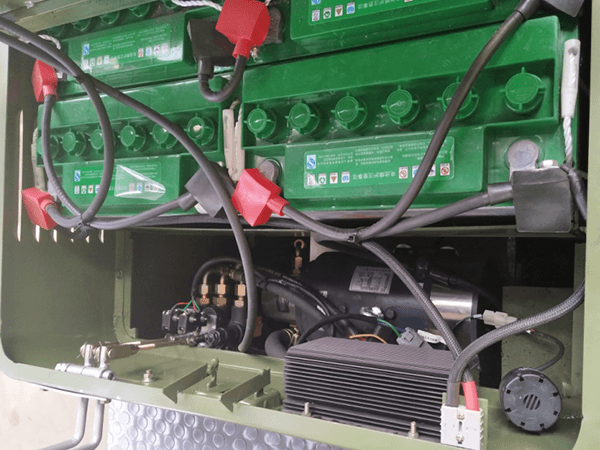

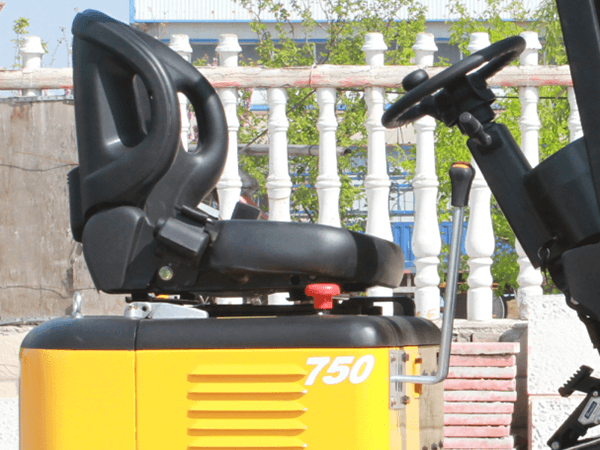

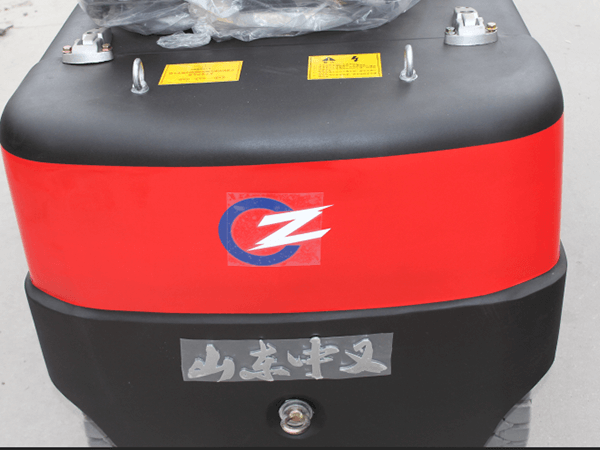

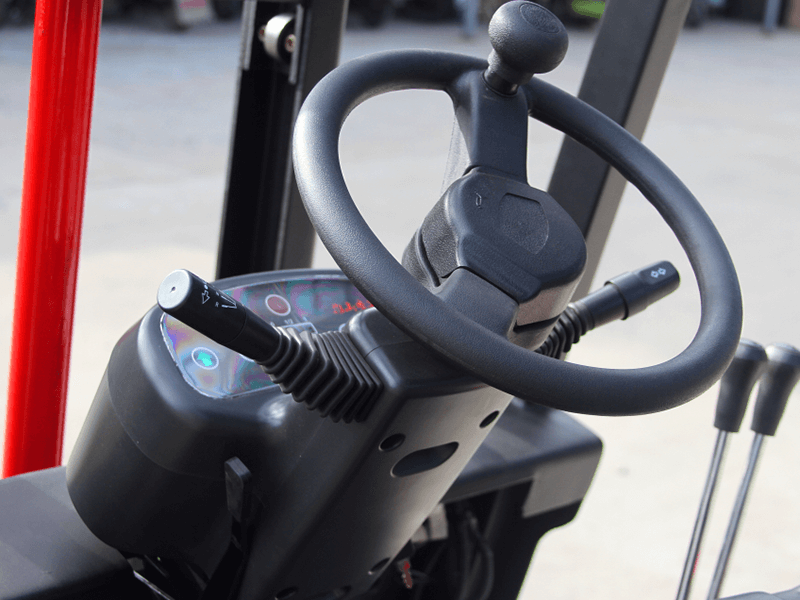

Details:

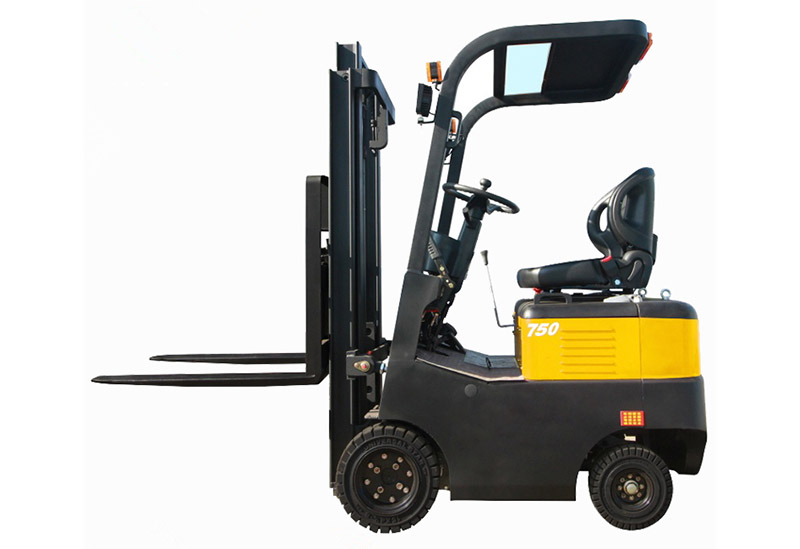

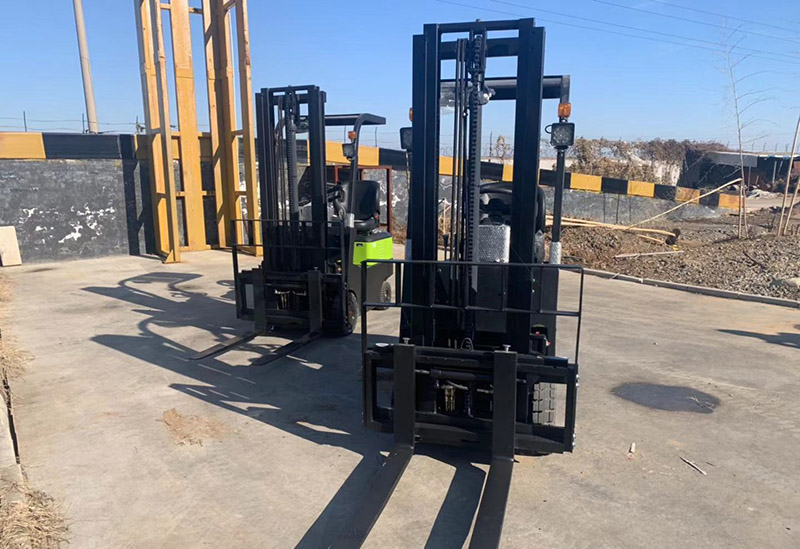

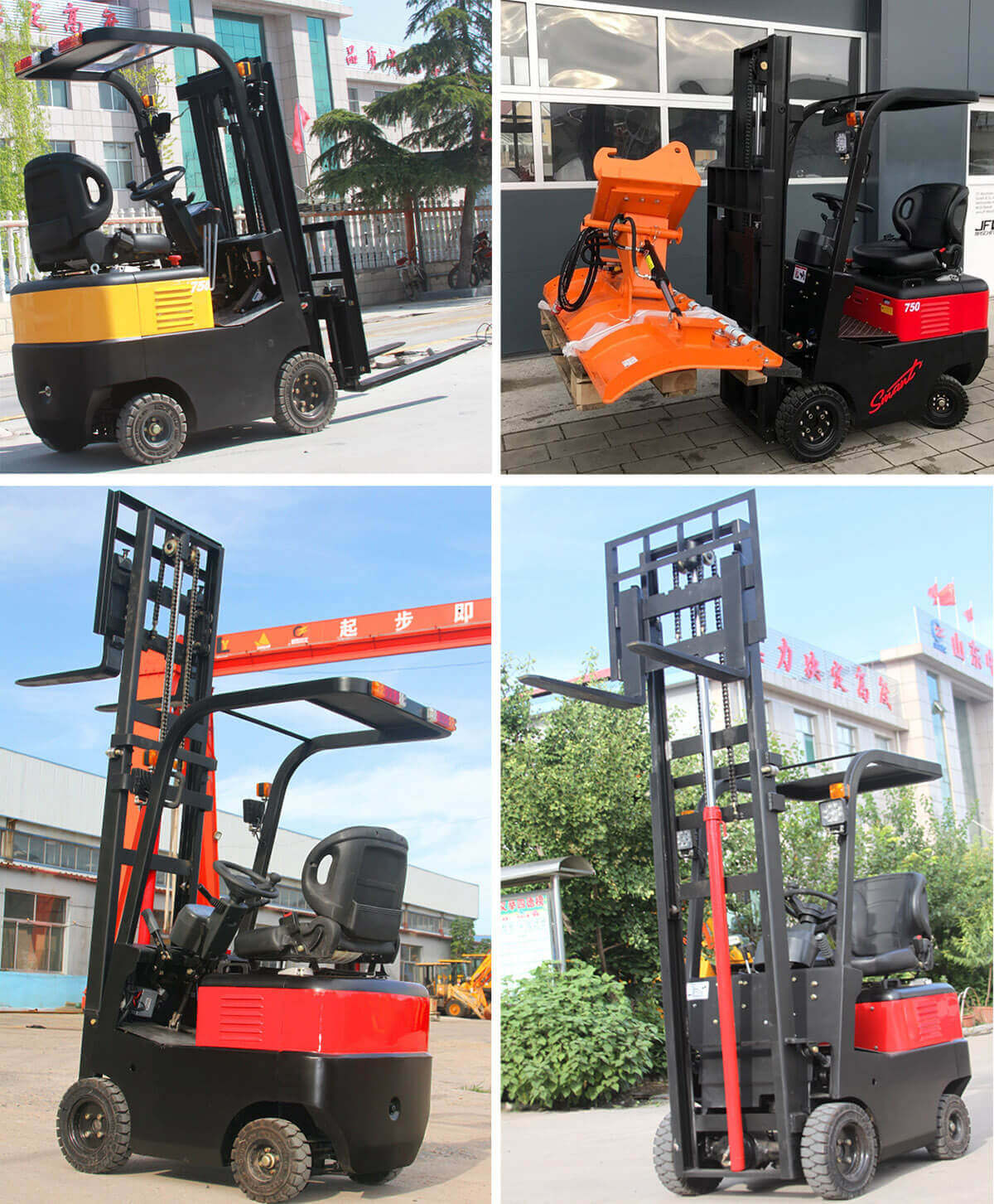

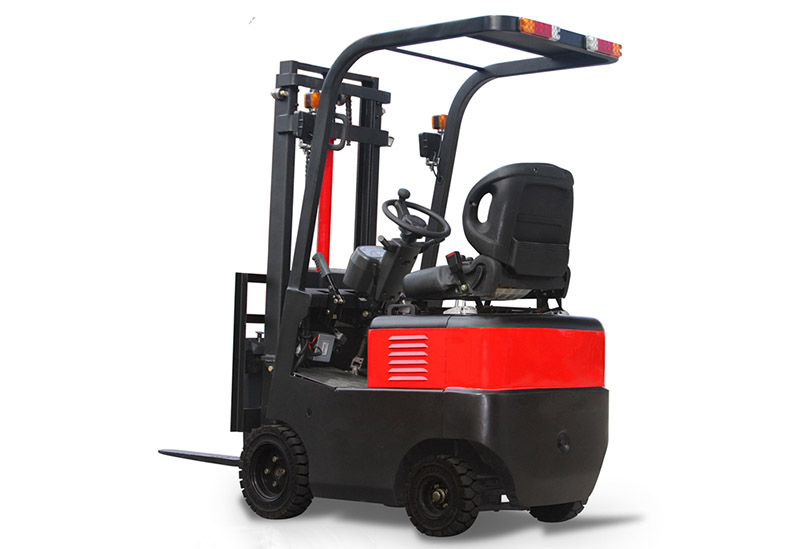

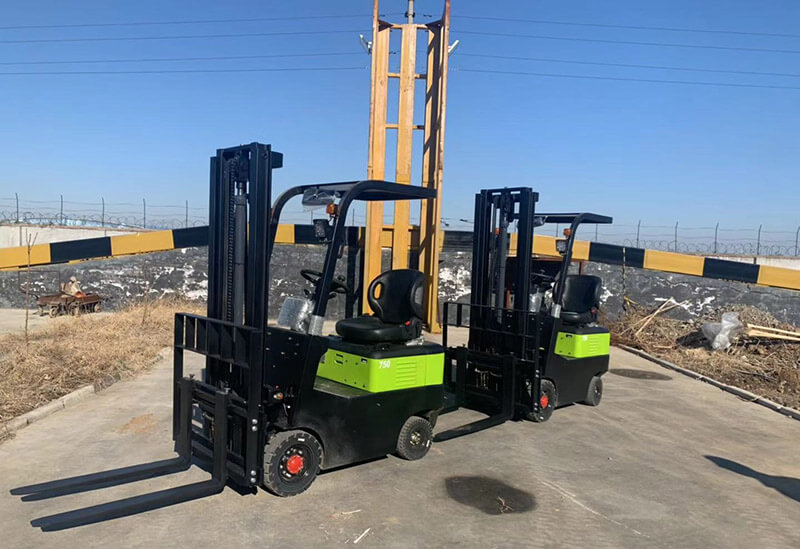

The real photo of 750kg forklift:

Quotation:

Model: 0.75 ton/2.5m lifting height forklift standard model

Payment: 30% T/T in advance, balance before delivery

Delivery time: 7 days

Packing: Nude packing/ 16 units 1*40HC container; 7units 1*20GP container

Please note: if you order 1 set, we will ship it in a wood box.
