Parameters Info:

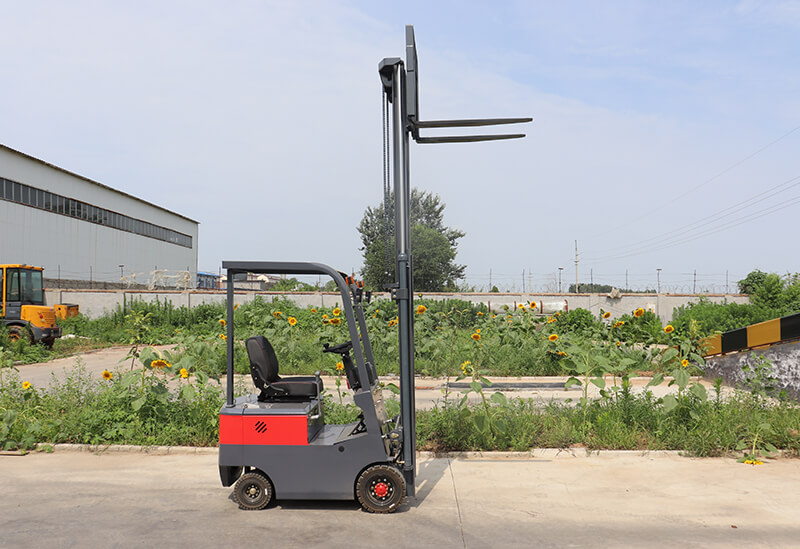

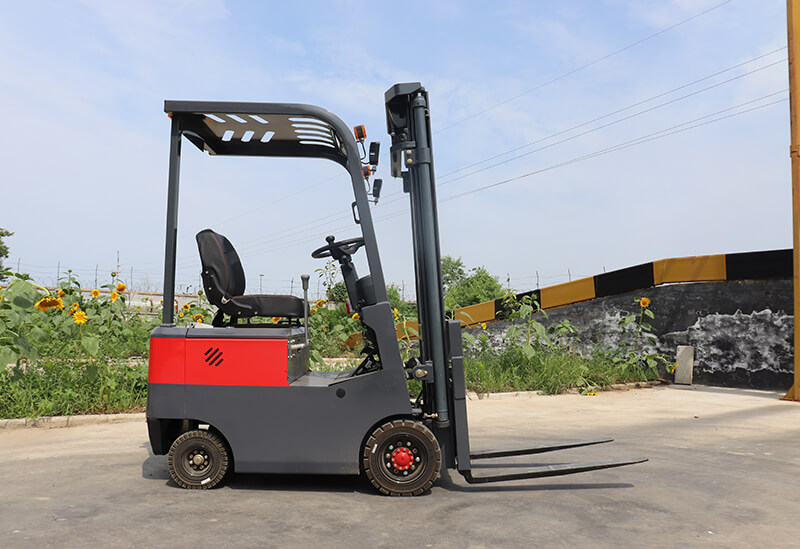

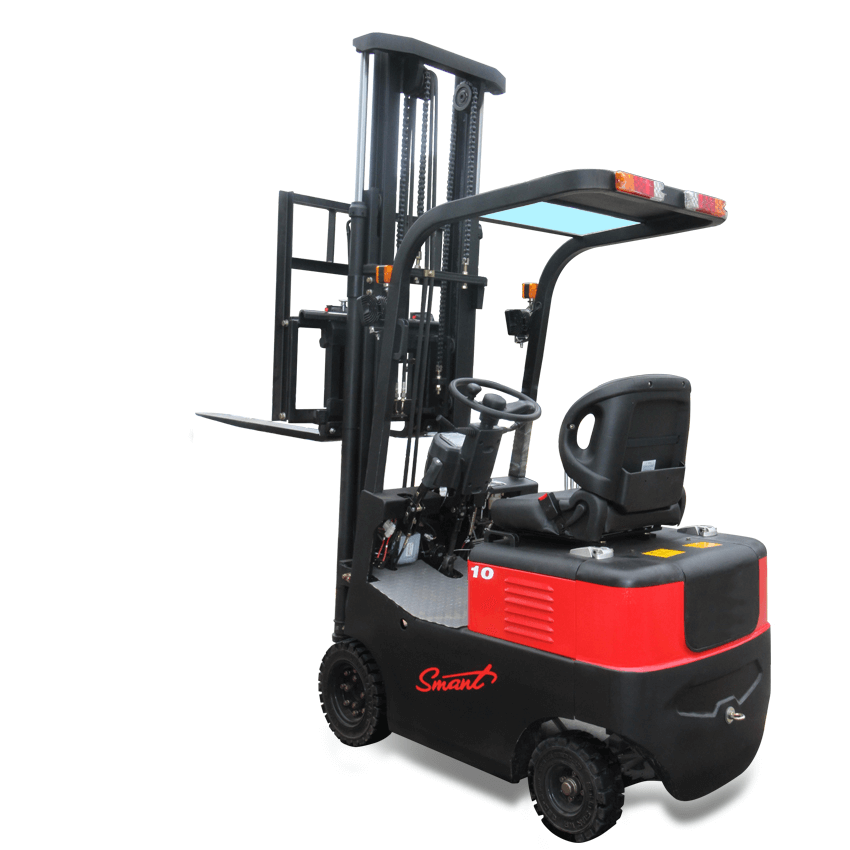

Model		CPD10E
Power type		Battery
Rated load		1000kg
Load center distance		400mm
Driving type		seat
Length	With fork	2592mm
	Without fork	1652mm
Whole Width		940mm
Height	Height no lifting frame	2040mm
	Top frame height	19500mm
	Max Height working	3820mm
Distance from seat to top light		970mm
Wheel base		1020mm
Front overhang		327mm
Back overhang		3130mm
Front wheel tread		840mm
Back wheel tread		741mm
Min Floor clearance		90mm
Max lifting height H		3000mm
Free lifting height		0mm
Fork changing		820/190
Min Turning radius		1800
Min driving width		2000
Frame angle a/β		6°/12°
Max lifting speed without goods		250mm/s
Max lifting speed with full goods		220mm/s
Max speed without goods		12Km/h
Max speed with full goods		11Km/h
Max climbing angle		≤10
Whole weight		1520Kg
Driving Wheel		2x/2
Type model		solid tyre
Front Tyre		15x4 1/2-8
Rear Tyre		3.50-5
Hand Brake		Hydraulic pedal
Brake type		M-Hand
Battery Volt/ capacity		2X24V/160
Driving motor power		4.0AC
pump power		4.0DC

Payment: 30% T/T in advance, balance before delivery

Delivery time: 15 days

Packing: Nude packing/ 13units; 1*40HC container; 6 units 1*20GP container
