Parameters Info:

Model			CPD16F
Power type			Battery
Rated load		Kg	1000
Load center distance		mm	400
Driving type			seat
Length	With fork L1	mm	3040
	Without fork L2		1970
Whole Width B			1010
Height	Height no lifting frame H1		1960
	Top frame height H2		2070
	Max Height working H3		4050
Distance from seat to top light L3			1000
Wheel base L4			1260
Front overhang Y			350
Back overhang L5			365
Front wheel tread R			1010
Back wheel tread P			830
Min Floor clearance F			130
Max lifting height H			3000
Free lifting height H4			40
Fork changing S			1040/200
Min Turning radius WA			2100
Min driving width RA			3850
Frame angle a/β		(°)	6/12
Max lifting speed without goods		mm/s	300
Max lifting speed with full goods			260
Max speed without goods		Km/h	14
Max speed with full goods			13
Max climbing angle		%	≤15
Whole weight		Kg	2380
Driving Wheel			2/2
Type model			Solid tire
Front Tyre			18x7-10
Rear Tyre			16x6-8
Hand Brake			Hydraulic pedal
Brake type			M-Hand
Battery Volt/ capacity		V/Ah	48V/230
Driving motor power		kW	5AC
pump power			6DC

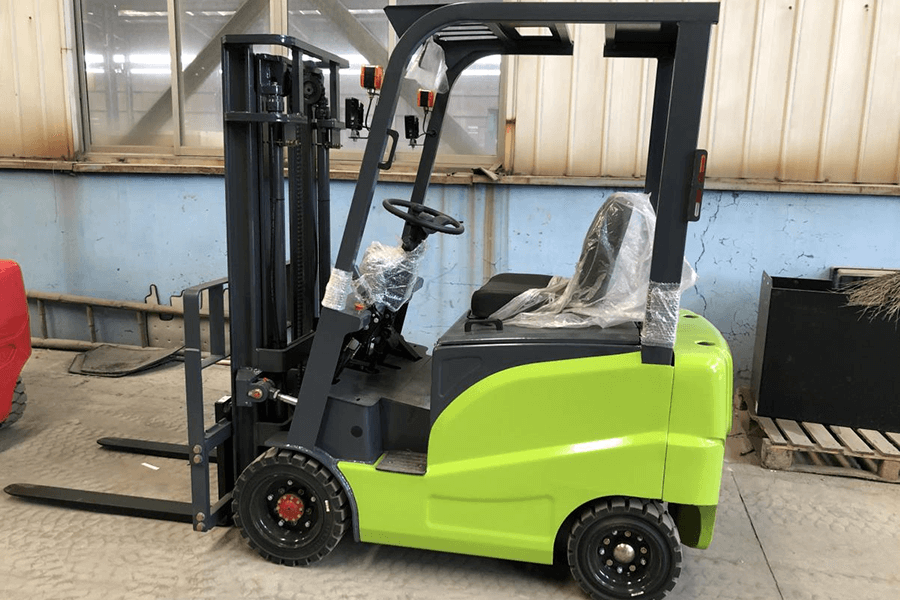

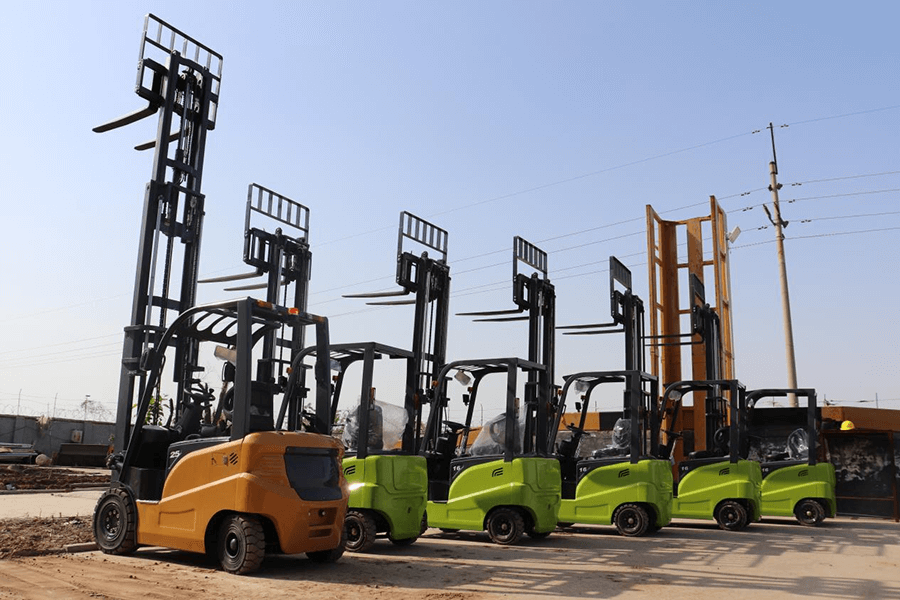

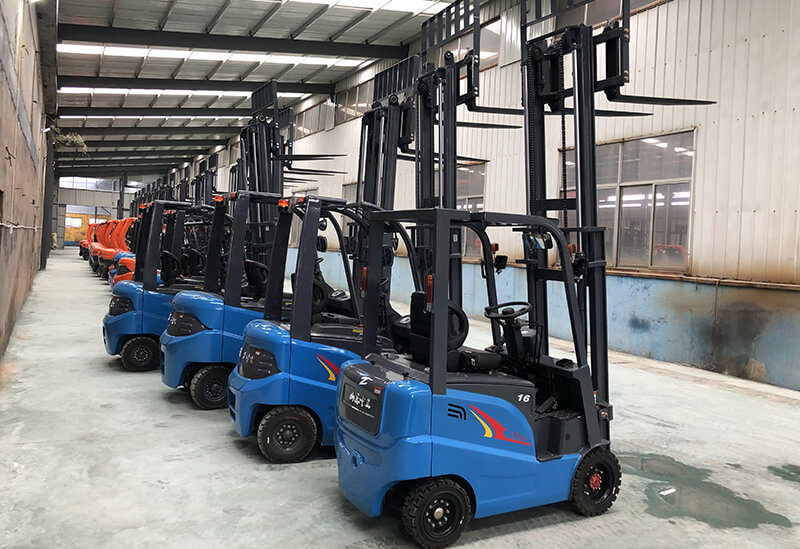

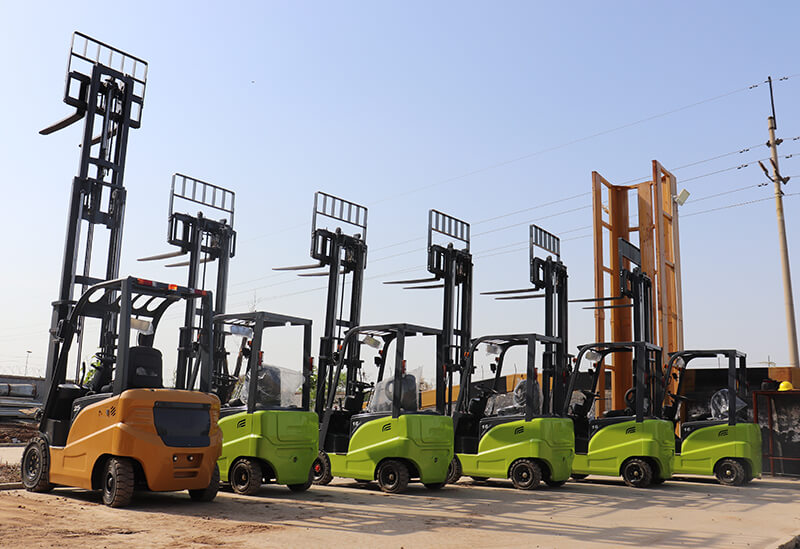

Some whole details photo:

Details:

Payment: 30% T/T in advance, balance before delivery

Delivery time: 15 days

Packing: Nude packing/ 11units 1*40HC container; 4units 1*20GP container
