Long Working-Life Forklift Made in China

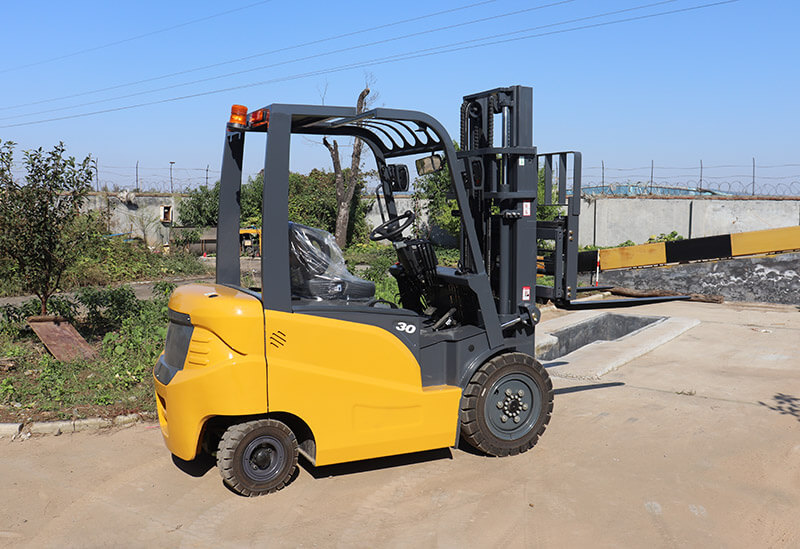

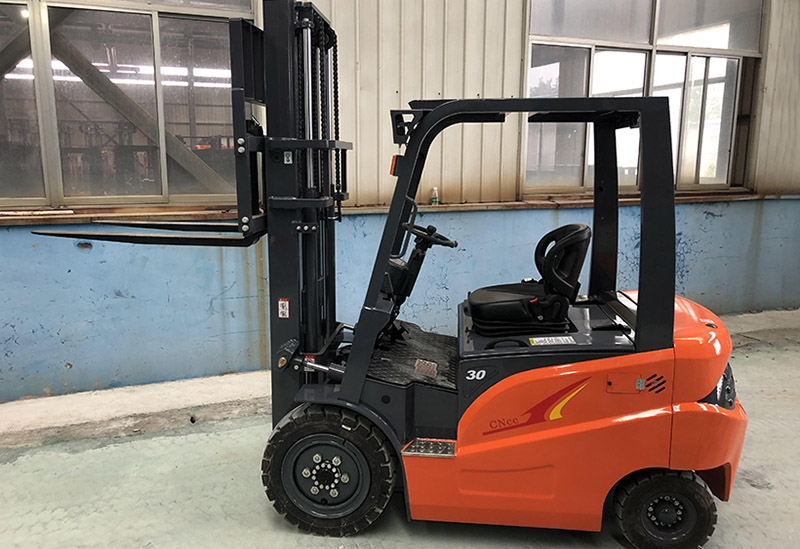

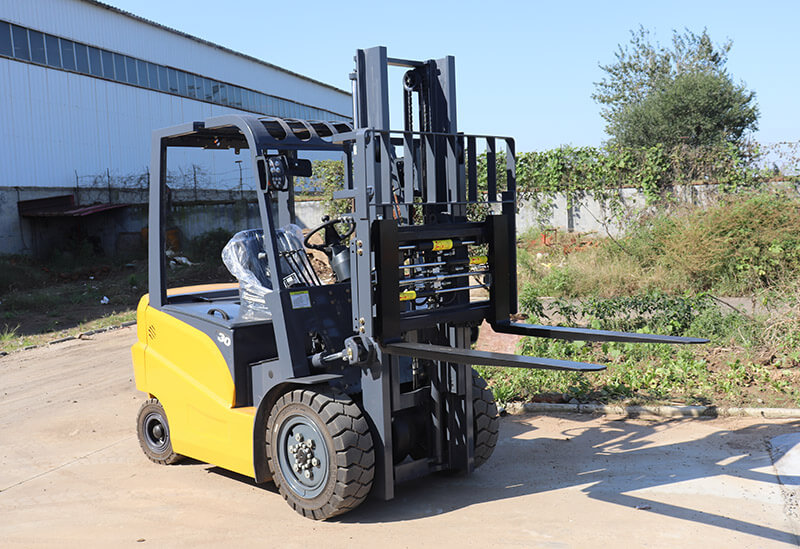

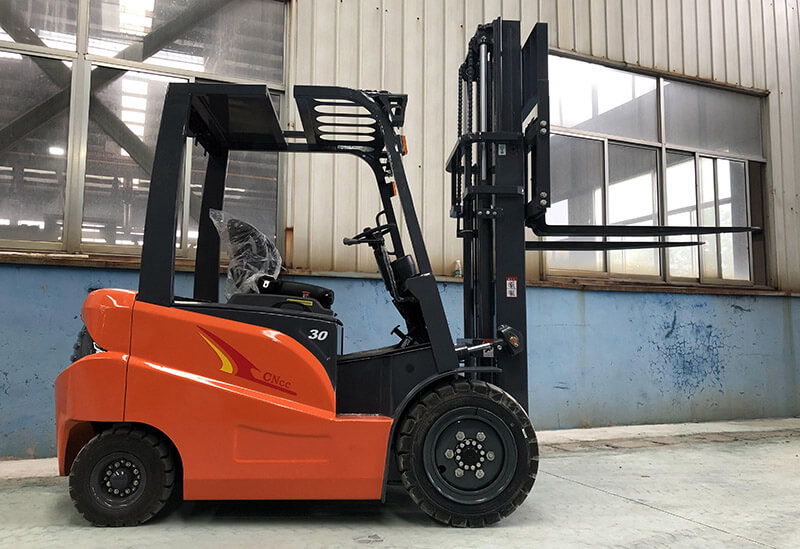

CPD30 Electric Forklift

Model			CPD30
Power type			Battery
Rated load		Kg	3000
Load center distance		mm	500
Driving type			seat
Length	With fork L1	mm	3850
	Without fork L2		2780
Whole Width B			1270
Height	Height no lifting frame H1		2070
	Top frame height H2		2205
	Max Height working H3		4055
Distance from seat to top light L3			972
Wheel base L4			1830
Front overhang Y			475
Back overhang L5			490
Front wheel tread R			996
Back wheel tread P			968
Min Floor clearance F			115
Max lifting height H			3000
Free lifting height H4			145
Fork changing S			250~1100
Min Turning radius WA			2500
Min driving width RA			4275
Frame angle a/β		(°)	5/10
Max lifting speed without goods		mm/s	350
Max lifting speed with full goods			280
Max speed without goods		Km/h	15
Max speed with full goods			14
Max climbing angle		%	≤15
Whole weight		Kg	4000
Driving Wheel			2/2
Type model			pneumatic tyre
Front Tyre			28x9-15
Rear Tyre			18×7-8
Hand Brake			Hydraulic pedal
Brake type			M-Hand
Battery Volt/ capacity		V/Ah	80V/300
Driving motor power		kW	10AC
pump power			12DC

Payment: 30% T/T in advance, balance before delivery

Packing: Nude packing/ 5 units 1*40HC container; 2 units 1*20GP container
