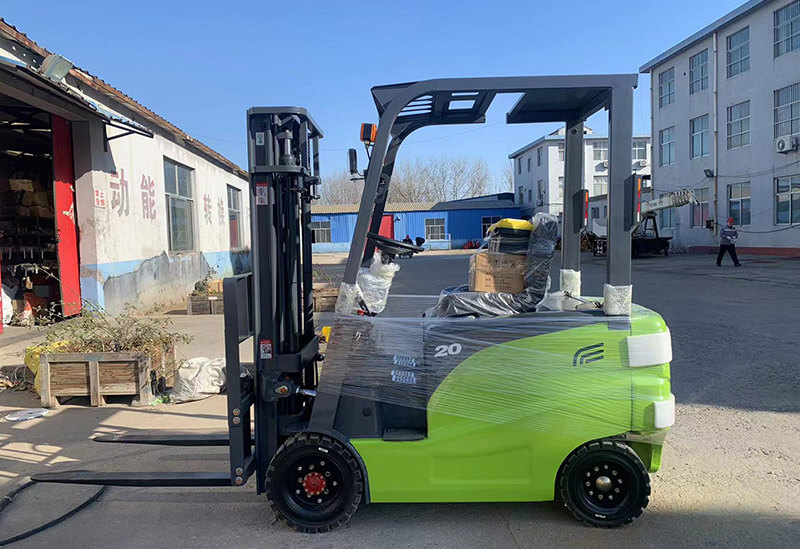

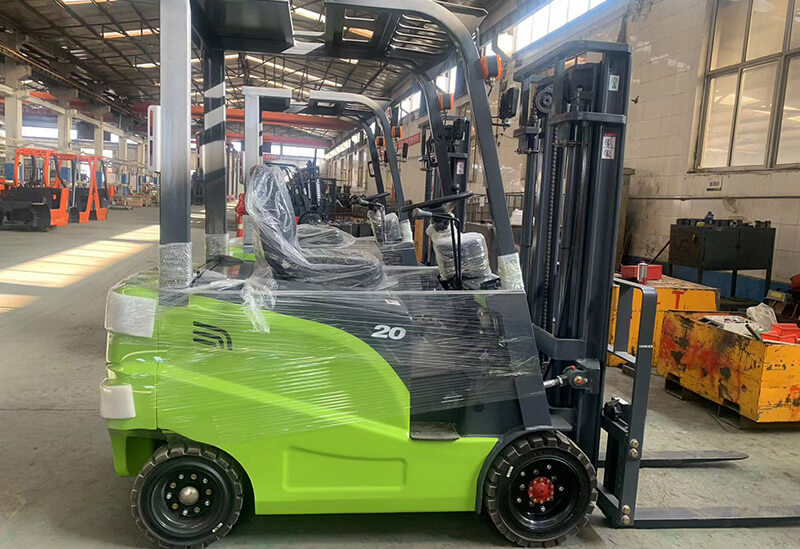

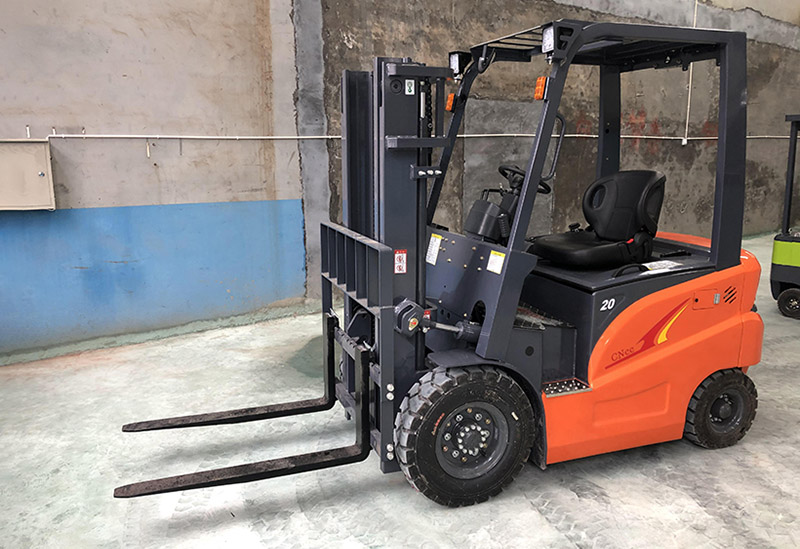

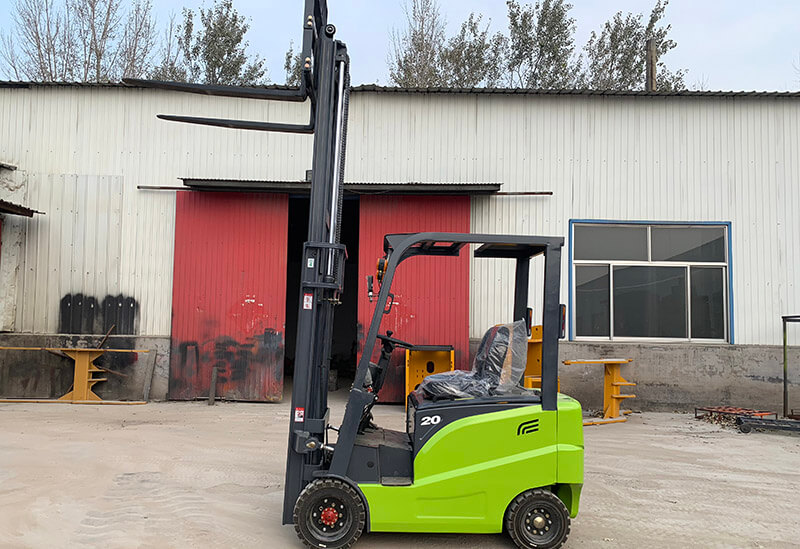

CPD20 Electric Forklift

Parameters Info:

ModelCPD20
Power type Battery
Rated load Kg 2000
Load center distance mm 500
Driving type seat
Length With fork L1 mm 3550
Without fork L2 2480
Whole Width B 1180
Height Height no lifting frame H1 1995
Top frame height H2 2210
Max Height working H3 4100
Distance from seat to top light L3 1070
Wheel base L4 1650
Front overhang Y 410
Back overhang L5 420
Front wheel tread R 1000
Back wheel tread P 645
Min Floor clearance F 110
Max lifting height H 3000
Free lifting height H4 150
Fork changing S 1024/200
Min Turning radius WA 2285
Min driving width RA 3995
Frame angle a/β (°) 6/10
Max lifting speed without goods mm/s 280
Max lifting speed with full goods 260
Max speed without goods Km/h 14
Max speed with full goods 13
Max climbing angle % ≤15
Whole weight Kg 3400
Driving Wheel 2/2
Type model pneumatic tyre
Front Tyre 6.50-10
Rear Tyre 18×7-8
Hand Brake Hydraulic pedal
Brake type M-Hand
Battery Volt/ capacity V/Ah 48/230
Driving motor power kW 7.5
pump power 10

Payment: 30% T/T in advance, balance before delivery
